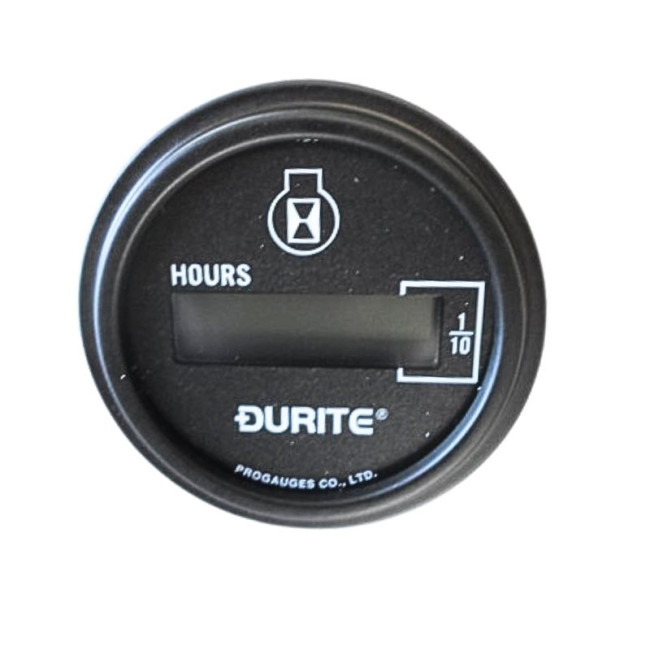

Meter digital 52mm

1- Choose a suitable location for the gauge with adequate access to the rear of the gauge for connections and fittings.
2. Turn off the ignition and remove the key. Disconnect the battery (ground first). Note: Before disconnecting the battery think retrieve the codes if you have an immobilizer.
3. Cut a hole of 52 mm diameter at the chosen location for the gauge. Push the dipstick into the hole and mount the U bracket on the rear mounting studs on the dipstick. Align the gauge and tighten the nuts.
4. Connect the terminal marked at most 3 (timed circuit) and connect the terminal marked 2 to ground or negative supply.
1 marked the terminal can be left unconnected or can be connected to more to allow the hour meter to be read with the circuit timed off.
5- verify that all connections are correct and secure. Reconnect the battery (last mass). Start the engine and check the hour meter works.
6- The hour meter can be reset by connecting momentannément a positive flow to the terminal marked 4
